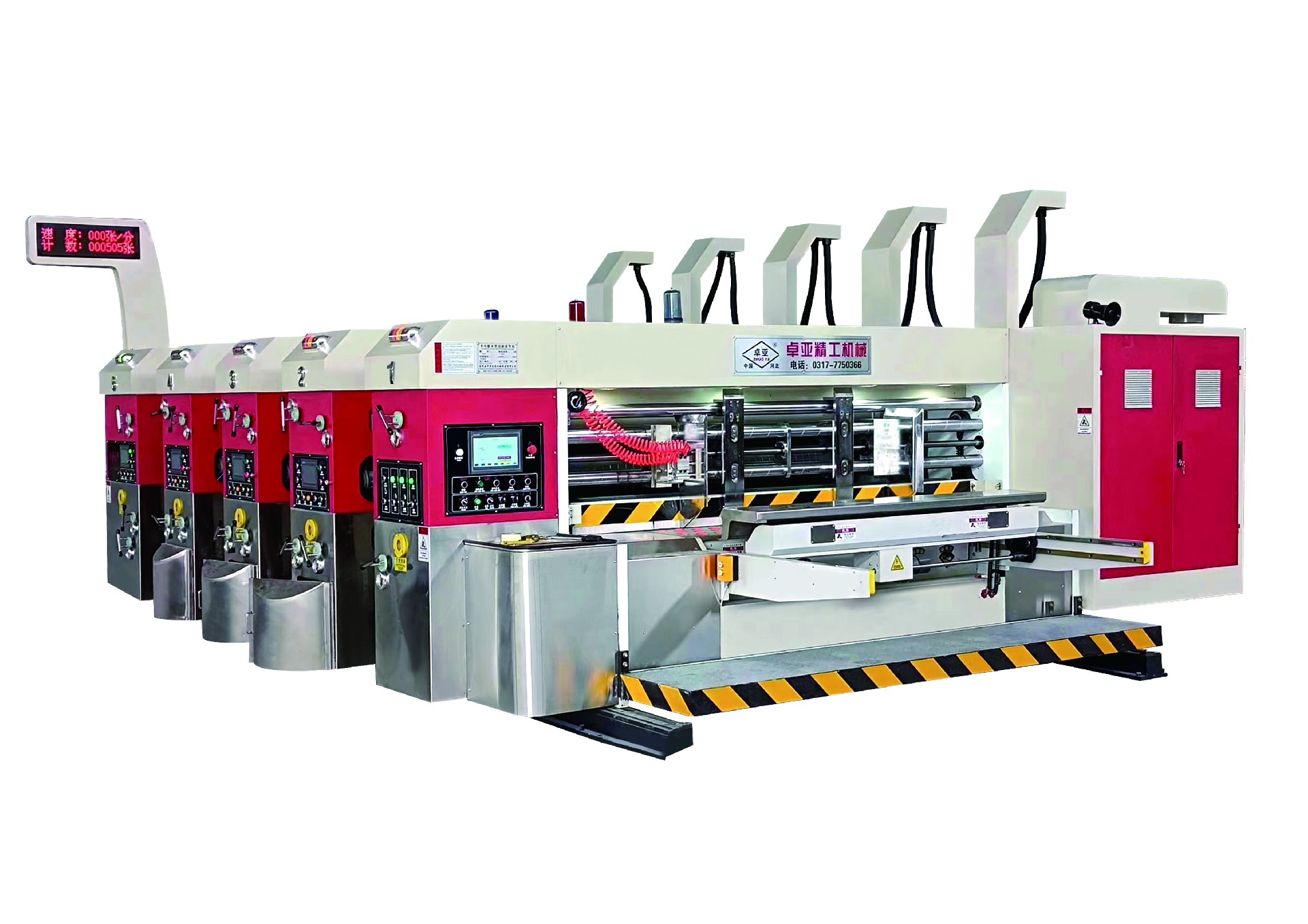

Use and characteristics:

●  Vacuous adsorbing front feeding paper system, applicable to all kinds of flute profile.transfer smoothly;high speedly and precisely.
●  Frequency transformer devices have been adopted to use on the host, fans and phase adjustment.
●  The drive gear：20GrMnTi high frequency-quenched and carburizing done.
●  Cross-trundling roller driving system, no wear for long time using, ensure for transmission accuracy.
●  Free-keys connection style, roller connects with gear, ensure for registration accuracy
●  Blade-block can be traversed or the carton height can be adjusted, anti-collision device can ensure the safety of the machine.
●  Mechanical spray lubrication, pump circulating system for gears, make gear service life long. Auto-return function.
●  Function of storage of normal die-cutting orders, fast and efficient.

Stacker

●  The paper-catching arm can be operated manually or automatically. Safetyfunction is installed which can protect operator when the paper-catching armslides suddenly.
●  Elevation and subsidencei of collection platform is driven by the strong chains.
●  Piling height: 1600mm, 1800mm, 2000mm.
●  The collection platform can automatically adjust the height of tilt along with theheight of piling paperboard. Elevating motor with electric brake function to keepthe platform stable.
●  Pneumatic paper-lifting structure. When the paperboards are piled to the presetheight, the paper-catching holder will open automatically and the pedestal willhold the paperboard.
●  The flat corrugated belt prevents sliding.
