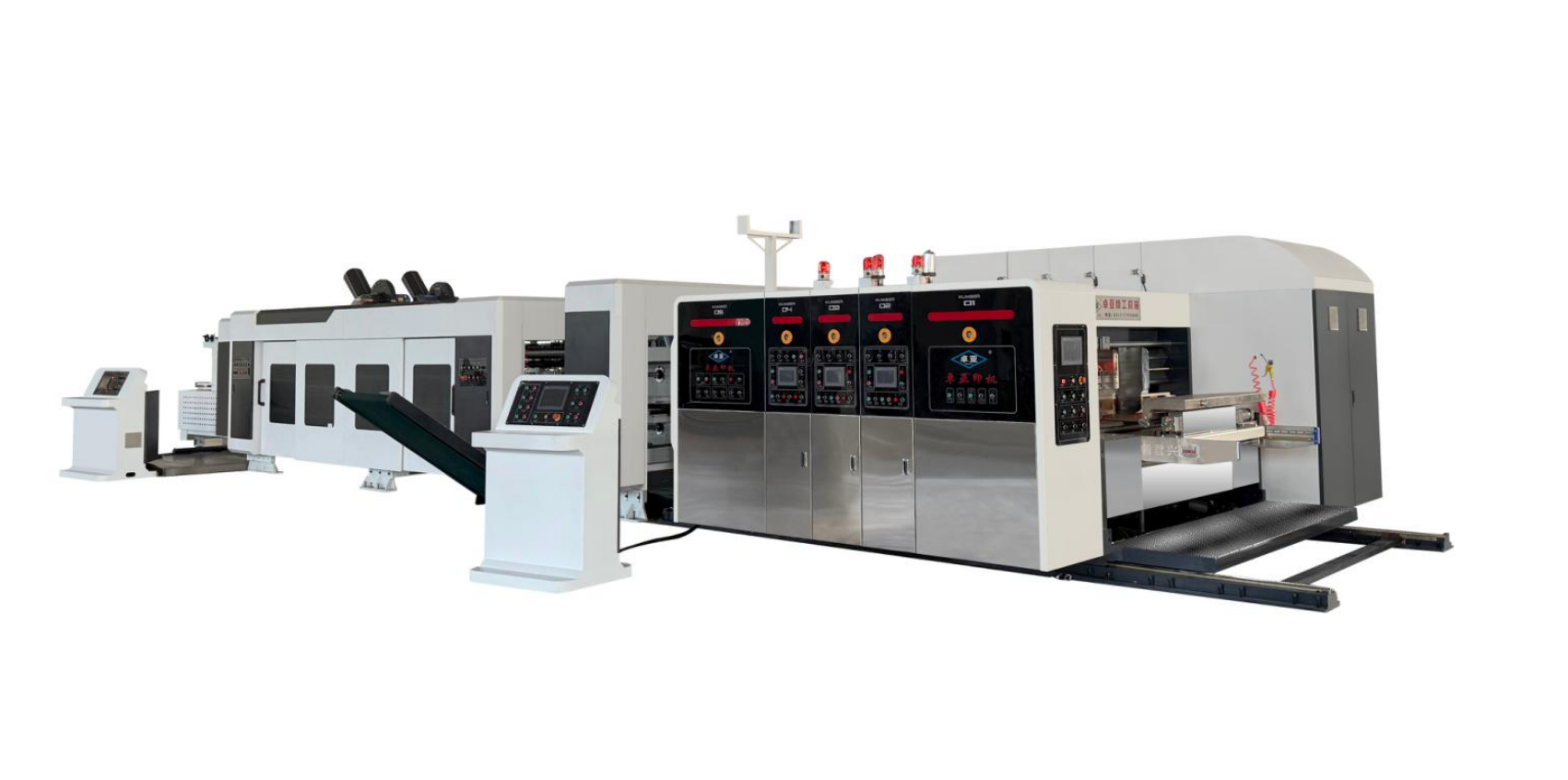

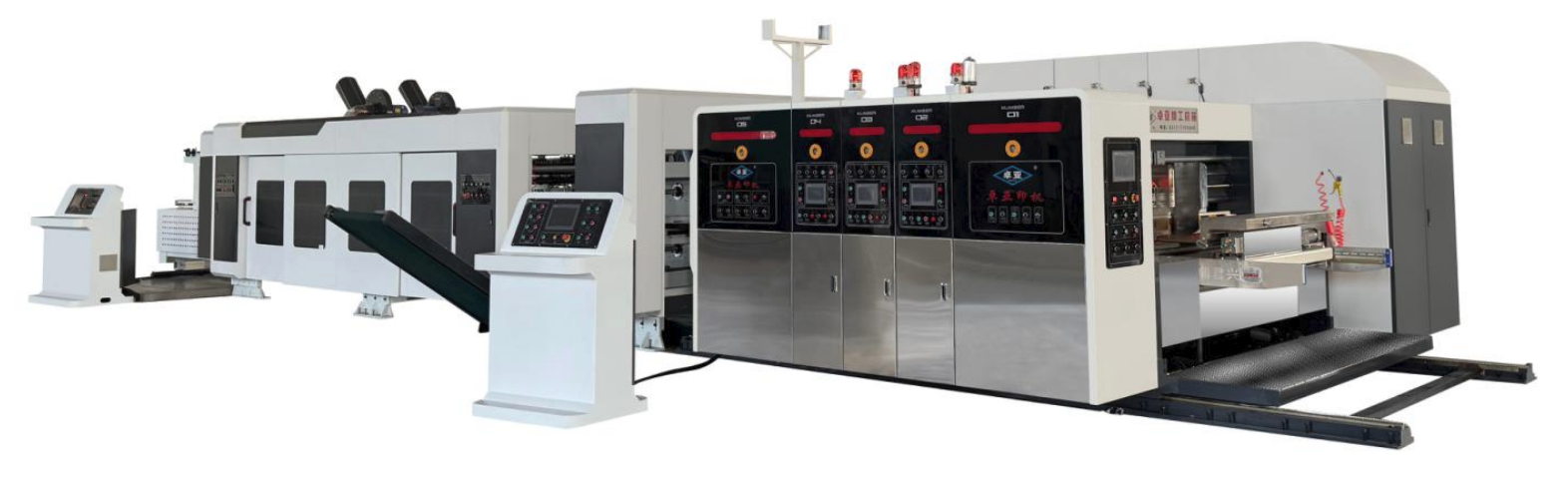

Vacuous adsorbing front feeding paper system, applicable to all kinds of flute profile, transfer smoothly with high speed and precise.
1. Vacuous adsorbing front feeding paper system, applicable to all kinds of flute profile.transfer smoothly;high speedly and precisely.
2. Frequency transformer devices have been adopted to use on the host, fans and phase adjustment.
3. The drive gear:20GrMnTi high frequency-quenched and carburizing done.
4. Cross-trundling roller driving system, no wear for long time using, ensure for transmission accuracy.
5. Free-keys connection style, roller connects with gear, ensure for registration accuracy
6. Blade-block can be traversed or the carton height can be adjusted, anti- collision device can ensure the safety of the machine.
7. Mechanical spray lubrication, pump circulating system for gears, make gear service life long. Auto-return function.
8. Function of storage of normal die-cutting orders, fast and efficient.
| Modle | 900 | 1224 | 1424 | 1624 | |
Max. machine speed(pcs/m) | 300 | 250 | 180 | 150 | |
Max.feeding size(mm) | 900x2400 | 1250x2700 | 1450x2800 | 1660x2700 | |
Min.feeding size(mm) | 280x680 | 350x680 | 360x680 | 420x680 | |
Max.printing area(mm) | 880x2000 | 1200x2400 | 1400x2400 | 1600x2400 | |
Max depth of slotting (mm) | 230 | 300 | 300 | 410 | |
Die cutting size (mm) | ≤±1.5 | ||||
Tinted precision (mm) | ≤±0.4(4 colors ) | ≤±0.5(4 colors ) | |||
Printing plate thickness(mm) | 7.2 | ||||
Feeding thickness (mm) | 2.5-12 | ||||
Min.slotting interval | Normal | 160x160x160x160 | 160x160x160x160 | 160x160x160x160 | 160x160x160x160 |
Reverse | 300x60x300x60 | 300x60x300x60 | 300x60x300x60 | 300x60x300x60 | |
