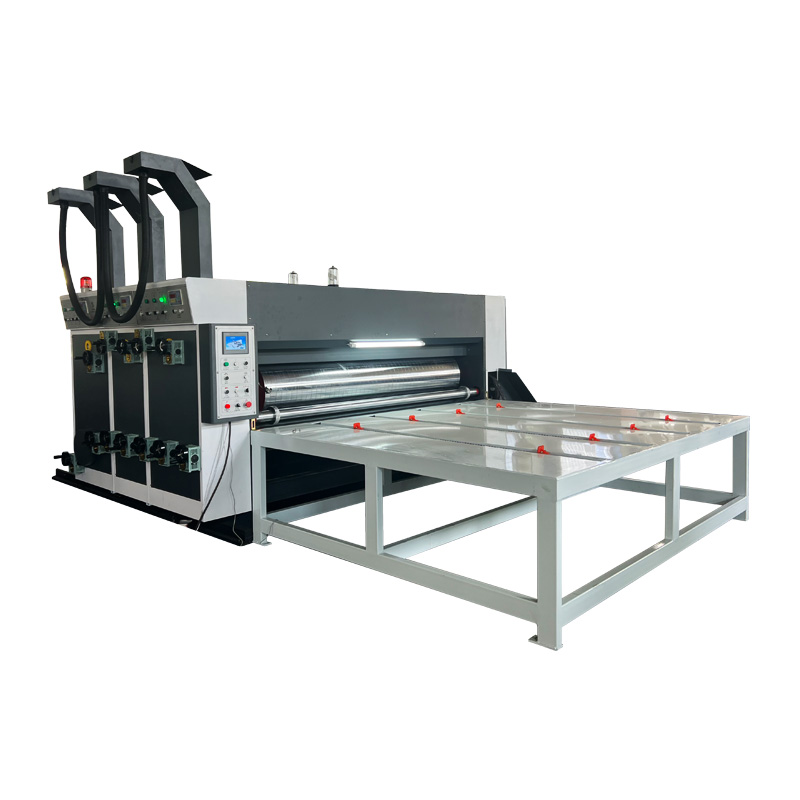

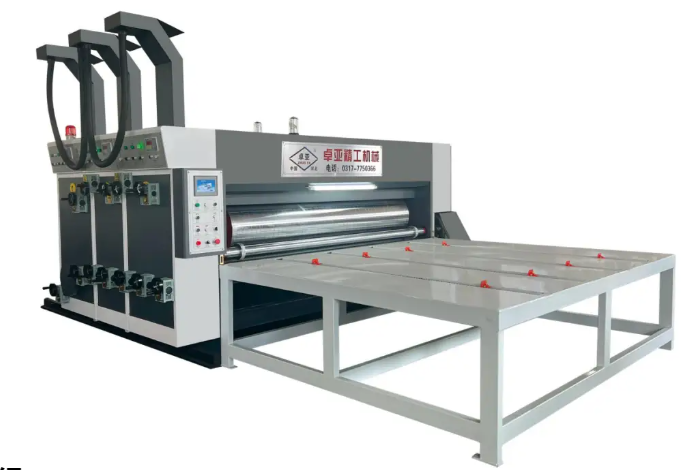

This machine consists of 4 parts: paper feeding part, 2 sets of printing, and die-cutting part. It can complete the printing, die-cutting, creasing and other processes of three-layer and five-layer corrugated cardboard at one time.

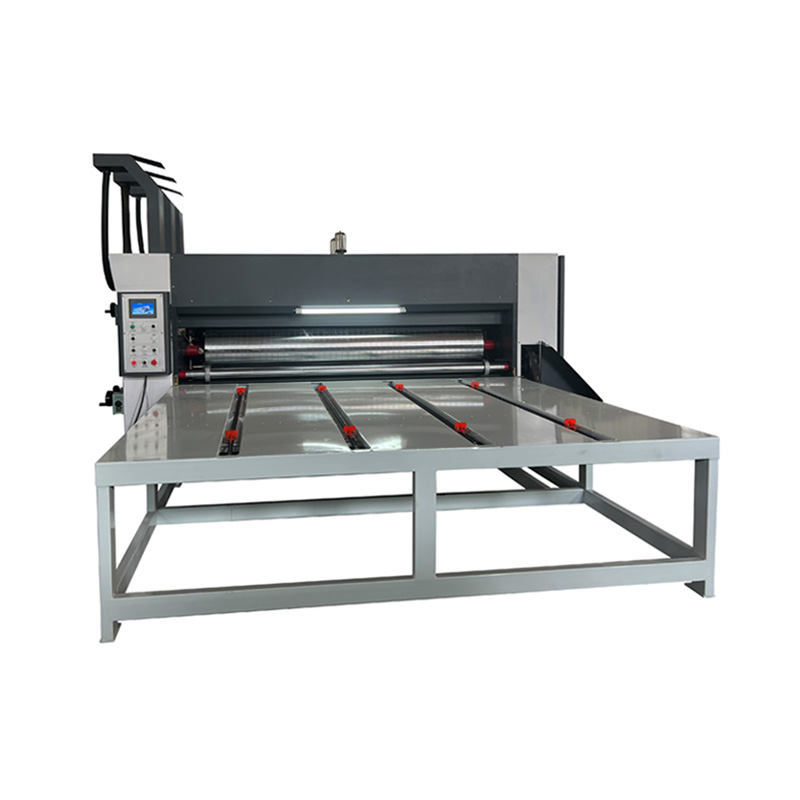

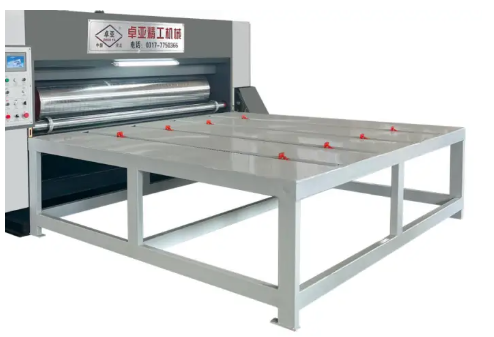

Paper feeding system
1. The paper is fed by manual unloading chain.
2. Each paper feeding part adopts 4 hanging chains, which can adjust the size of the cardboard, and the size can be customized according to the user's requirements.
3. Chain tension is manually adjusted. Equipped with a counter to display the production quantity.
4. A pneumatic interlock control switch is installed at the rear of the equipmentto realize emergency stop and inching of the forward and reverse main engine.

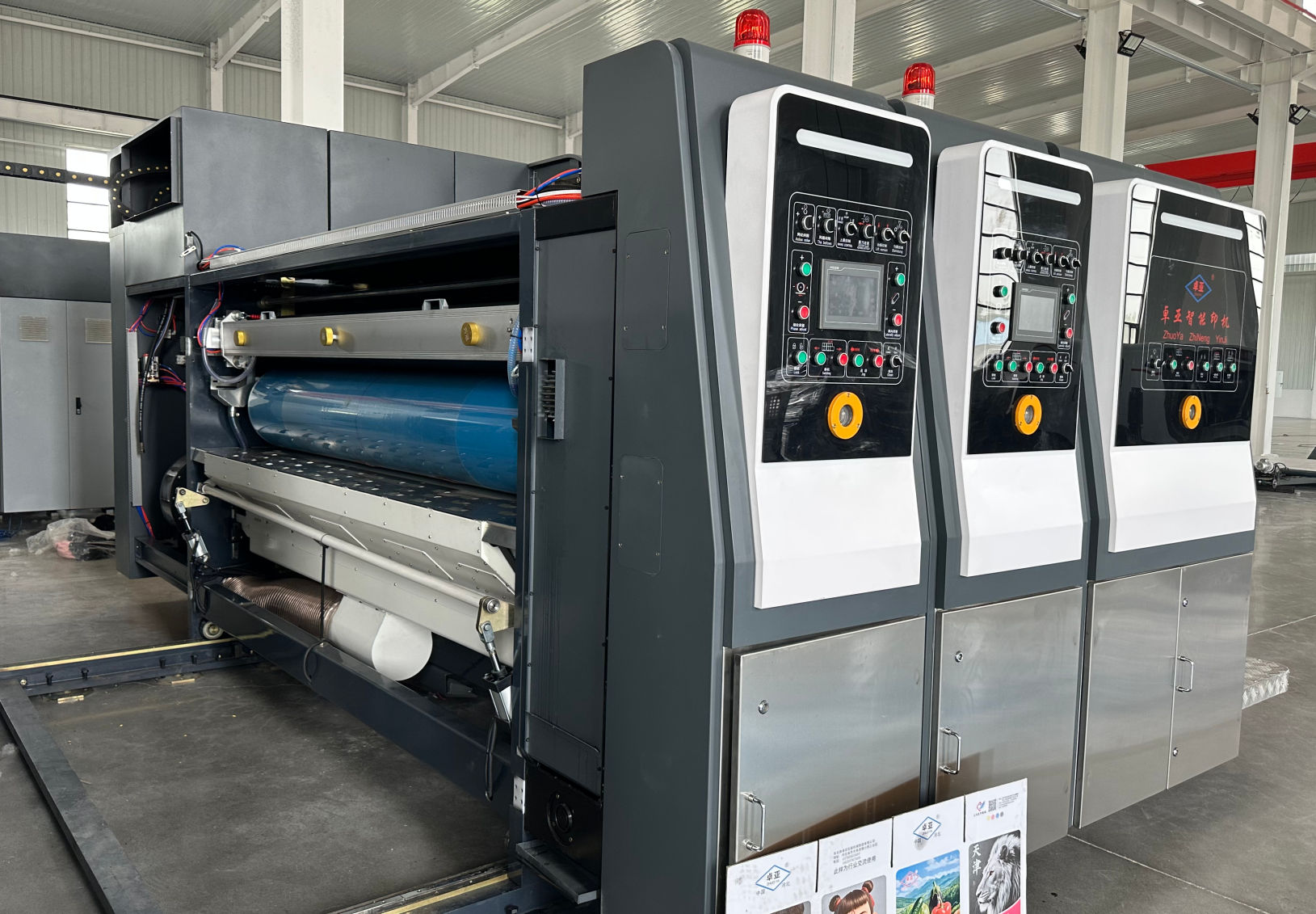

printing unit
1. Crew Combination
The push-button switch electrically controls the separation and combination of the machine, and is equipped with an automatic alarm device, which continuously rings the alarm during the running to ensure the safety of the workers.
Pneumatic interlocking device, the locking is firm, convenient and accurate.
The split drive shaft is equipped with an overload protection device to prevent damage to other components.

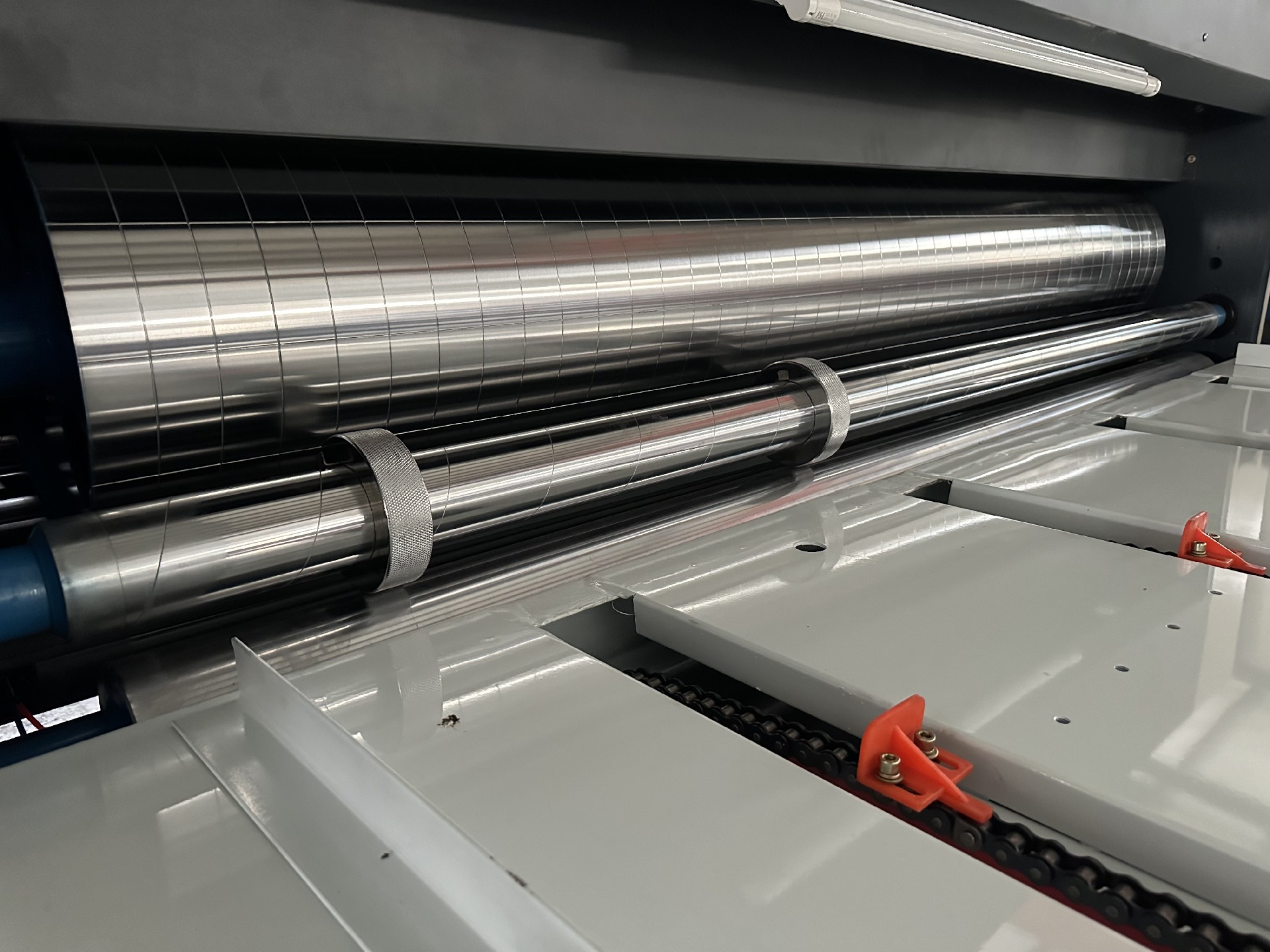

2. Front paper guide roller

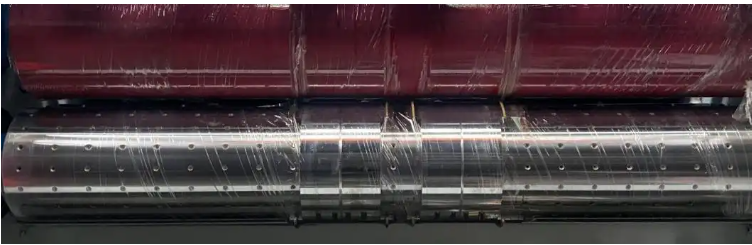

3. Printing plate roller
4. Embossing roller
5. Metal Anilox Roller
6. Rubber roller
7. Ink supply system
8. Phase adjustment mechanism

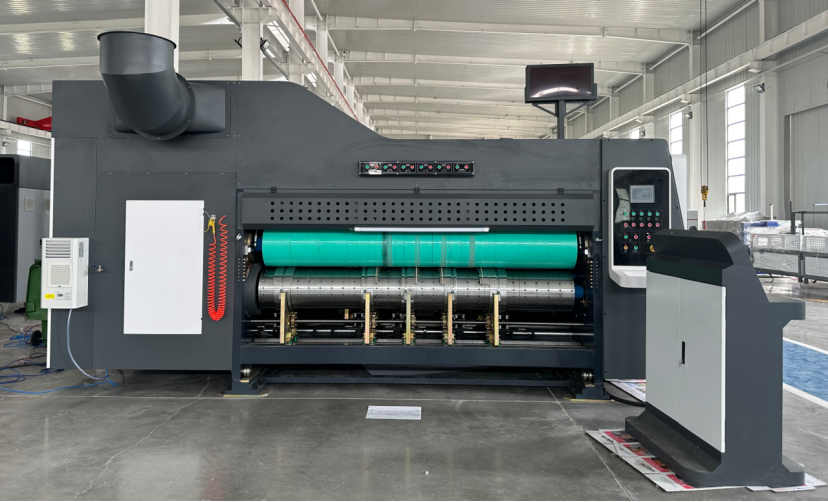

Die cutting unit :
