1. Cardboard conveying device

1) Device move

1. Each unit is motorized for left and right movement and has an alarm bell. When the unit is moving, the chime will warn to ensure the safety of the operator. After all units are closed, each section is pneumatically locked. There are also lead lock cylinders that allow each section to be locked with bottom rail locks. If the cylinder is not locked, the main motor will not work.

2) Front feed system.

1. The Leading edge paper feeding system adopts Taiwan TECO independent servo drive, which has high paper feeding accuracy and long service life.

2. The suction assists the cardboard feeding, which can make the cardboard enter smoothly. The size of the wind can be adjusted to match the camber of the cardboard.

3. The electric controller controls the left and right movement of the side baffle and the front and rear movement of the rear baffle. The distance between the front baffle and the feeding platform is manually adjusted synchronously.

4. The color touch screen displays the production quantity, can input the production plan, and also displays the number of sheets produced. Once the program is completed, the counter system stops feeding the part and issues a warning. The touch screen can store 999 orders.

3) "Automatic zero" and "printing plate cleaning memory" functions.

1. Both the feeding device and the printing device have the functions of "automatic zero return" and "plate cleaning memory".

2. Usually adjust the correct printing position of the printing roller and grooved roller, only need to enter 2 sheets to try, use the "automatic zero" and "printing block clear memory" functions. Reduce cardboard waste.

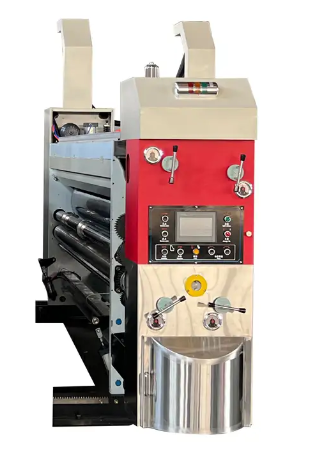

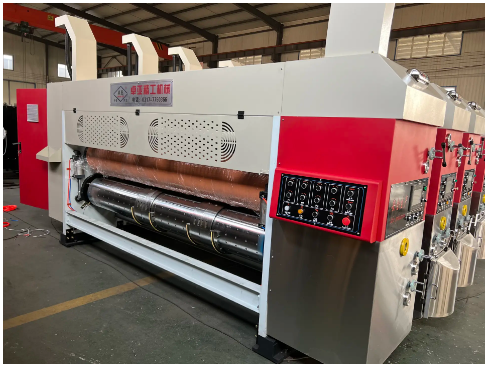

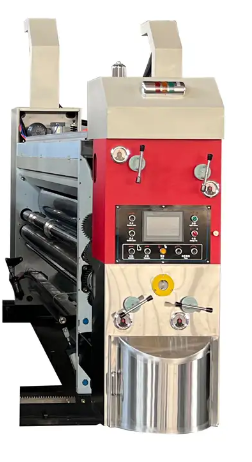

2. printing device.

1) Inking system.

1. The ink delivery system uses a pneumatic diaphragm pump to fill the ink to prevent the ink cup from splashing ink. Used to stabilize and maintain the operation of the ink distribution system.

2. There is an ink dust net to make the ink clearer and improve the printing effect.

    3.When the machine stops, the anilox roller and the rubber roller can operate the ink distribution system independently to prevent ink dry.

2) Fixed system

1. The self-locking system is used to keep the phases of each group of printing cylinders, paper feed rollers, rubber rollers and anilox rollers from shifting in each combination.

2. When each unit is separated, the cylinder locking system is used to lock the phase of each group of printing cylinders, so that the phase position remains unchanged and the position of the phase gear remains unchanged.

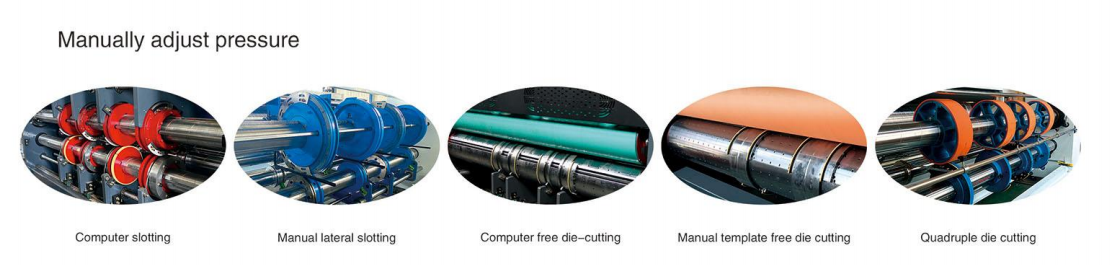

3. Die-cutting department function introduction

1) The pad roller and die-cut roller are made of high-quality materials, and the surface is ground and plated with hard chrome.

2) The die-cutting part adopts servo drive to increase operation stability and improve die-cutting accuracy.

3) The die-cutting roller and the unglue are automatically disengaged through the cylinder eccentric system without die-cutting, which can reduce the load operation of the machine and prolong the service life of the unglue and the knife die.

4) The mechanical transmission can make the Uli rubber move 40mm left and right, which can make the wear of the rubber roller evenly distributed, and greatly increase the service life of the rubber roller.

5) The die-cutting phase adopts PLC and electric adjustment, so that it can adjust the phase 360°, and run forward and reverse.
