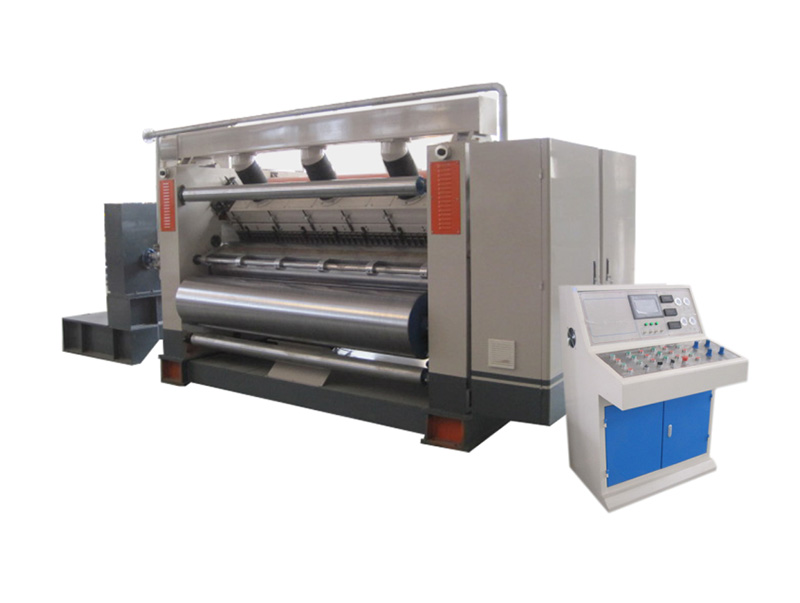

Product Introduction

1.320C Design Speed: 150m/min
2.Effective width: 1400mm -2200mm
3.Corrugated roller: Φ320mm
4.Drive reducer box with oil immersed type Ibricating to reduce noise keep runing stable, adopt gimbal transmission, separate power, (optional)
5.Corrugating rllr, pressure roller and glue roller by pneumatic adjustment.
6.Cardboard tansmit adopt vcum suction method, with wind control system, keep flute profiles stable of the lower-roller in the condition of running up. 7.Bearing of corugated and pressure roller adopt high temperature lubricate grease.
8.Glue parts auto supply glue circularly.
9.The uper-lower corugating rller are made of 48CrMo high qualty aly steel, after heat-treatment. The hardness is above HV1200,the surface be dealing with tungsten carbide.
10.The glue part surface are treated by special mesh snicked and chromeplated.
11 .Manud or electric insulation glue device.
12.Glue part can be running independently or non-independently while stopped.
