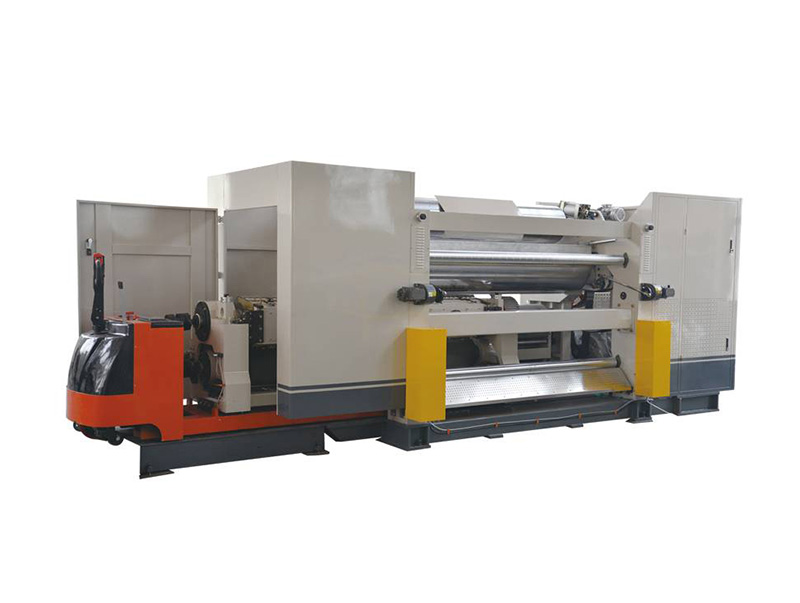

Product Introduction

1. 360E Designed Speed: 200m/min; 320E Designed Speed: 180m/min

2. Effective Width: 1400-2200mm

3. Main Corrugated Roller:Φ360mm/Φ320mm

4. Negative pressure design, the core paper could be pressed evenly andattach to the surface of the corrugated roller, and guled evenly, make thecorrugated paper attach conditon better.

5. 10 minutes fast change corrugated rollers, When change corrugatedrollers use electric trolley to trailer into the machine, fixed on the pedestalof the machine, make it fast and easy to change corrugated rollers.

6. Corrugated roller and pressure roller adopt high stability air bag controlsystem.

7. Glue quantity adopt electric adjust, electric separate glue device, Whenthe main motor stop, the glue unit could operate independently to avoidthe glue use up.

8. Movable gluing system. Not only wash easily, but also more convenientto maintain.

9. Operating system is simple. Touch screen operating interface, withcolorful pictures display the operating state, it'S easy to operate.

10. Built-in preconditioner have mist spray system to adjust the temperatureand moisture of the core paper.
