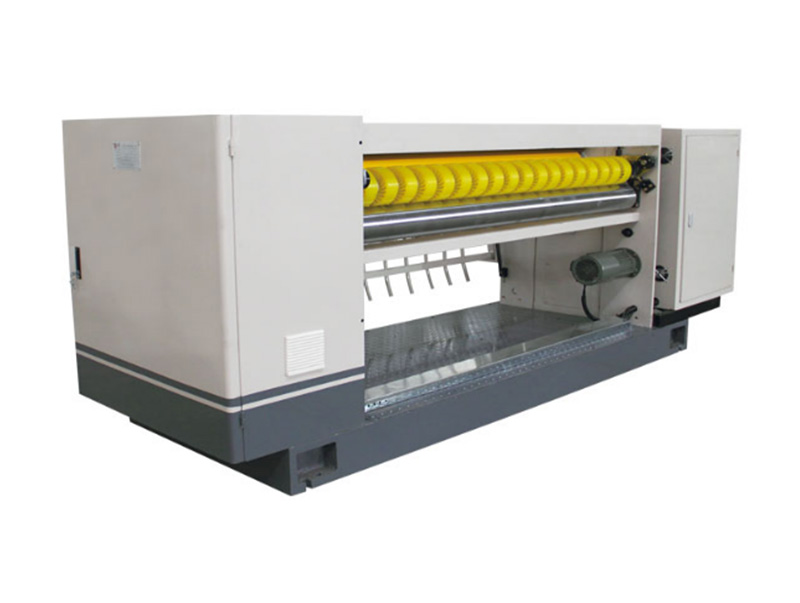

Product Introduction

1.Design speed:100—150m/min  Effective width:1400—2200mm

2. It can store 200 sets of orders, change the paper cutting specifications quickly and accurately, change orders without stopping, and can realize computer networking to facilitate production management.

3. The drive gear of the cutter shaft adopts high-frequency quenching of precision forged steel material to realize backlash-free transmission. It adopts advanced keyless connection method and has high transmission precision.

4. The blade of the cross-cutting machine adopts a steel spiral knife structure with a serrated knife type. Scissor-type shearing, low shearing force and long blade life.

5. The front and rear paper feeding rollers adopt the method of pressing paper by the sun wheel, the conveying is smooth, the pressure is uniform, and it is not easy to crush the board or cause blockage.

6. This model is an energy storage type braking (non-energy consumption braking), so it has low energy consumption in the production process, and the average power consumption is 1/3 of the ordinary NC cutting machine, saving more than 70% of electricity and saving money. The goal.

7. Precisely adjustable backlash-free gears to ensure precise meshing of the blade and balanced operation.

8. Using independent oil pump and filter with two sets of copper pipes distributed in each gear position for oil supply, lubrication and cooling.

9. Knife roller: high quality precision forged steel material, after balance treatment, it has good stability.
