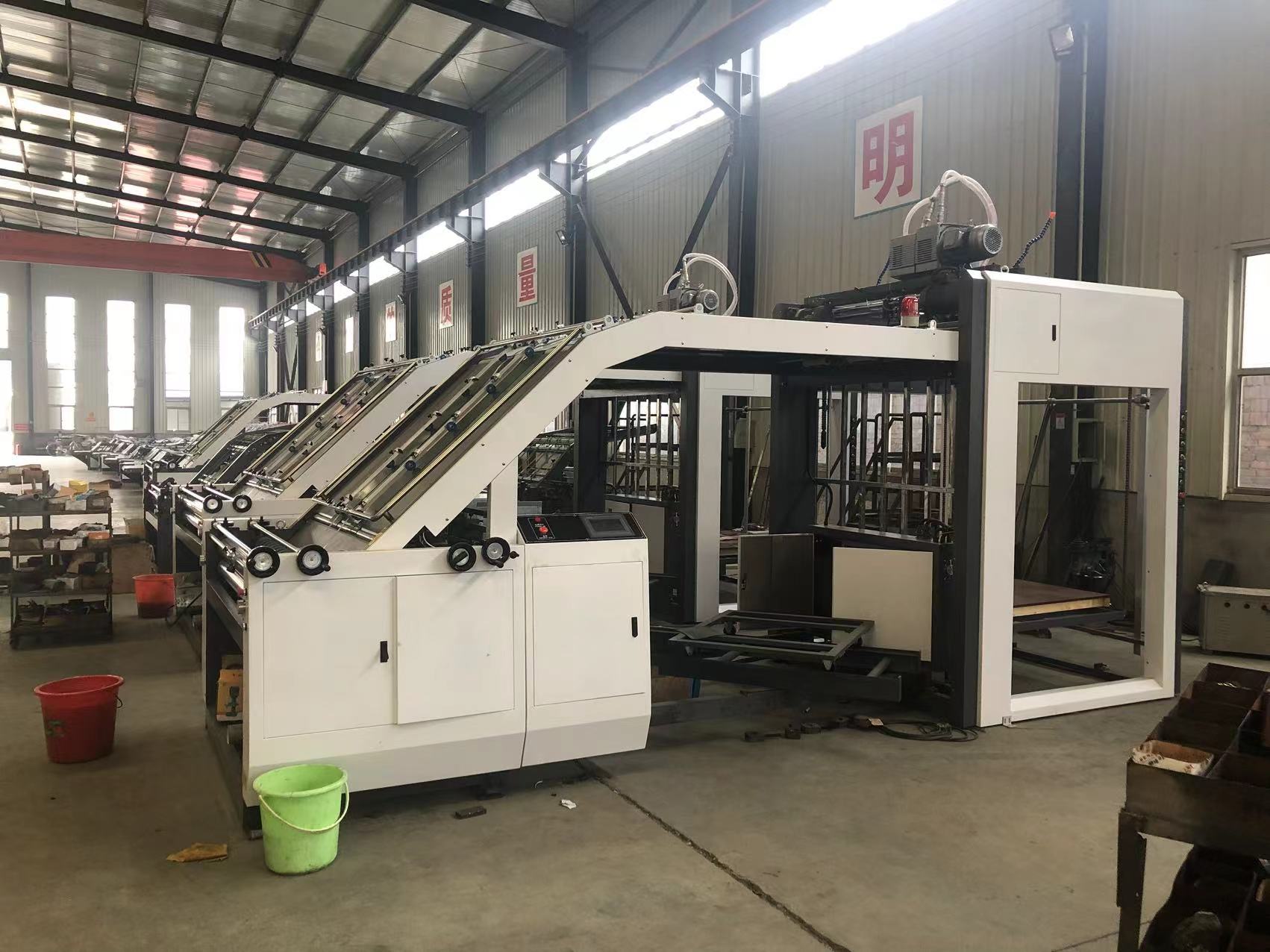

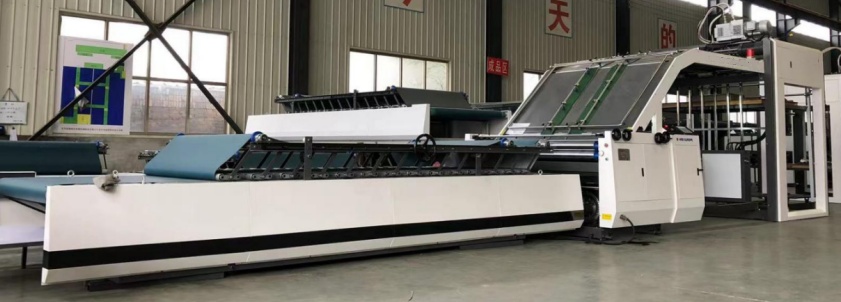

Automatic 3ply corrugated cardboard laminating machine


Fully Automatic laminator, for laminating 3 ply corrugated cardboard.



Advanced automatic tracking technology, according to the size of the paper automatically adjust the relevant parameters,so that the machine is always running in the best condition

Unique front gauge positioning system, accuracy and the bottom paper never exceed; top paper exceed adjustable

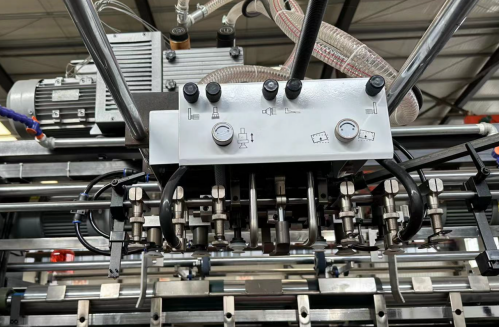

Equipped with high precision high speed automatic feeder, strengthening type paper feeding device, feeding smoothly.

Standby stack table can pile paper under non-stop situation, along the rail into the elevator, high working efficiency

Imported electrical components, to ensure the stability of the circuit system. PLC tracking technology, automatic fault alarm;

Fully automatic glue supplementary system, can automatically replenish the loss of the amount of glue, and cooperated with the glue recycling

Independent water tank control cycle, ensure the bottom paper back dry, at the same time cleaning up roller、glue receive tank and back glue tank;

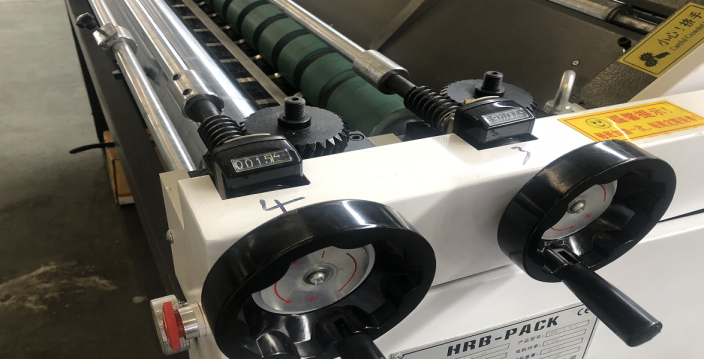

Single side adjustment of the roller pressure, and equipped with a dial gauge, the replacement of the bottom paper one-step-to- reach.


Technological parameter

Model

HRB-1300A

HRB-1600A

Max.feeding size



1300X1250mm

1600X1250mm

Min.feeding size

400mmX400mm

400mmX400mm

Top paper thickness

140-800g

140-800g

Bottom sheet thickness

2/4 ply A/B/C/E/F Flute

2/4 ply A/B/C/E/F Flute

Speed



0-8000pcs/h

5000m/h

0-8000pcs/h

5000m/h

Precision



±1mm

±1mm

Power



14kw

14kw

Size



12m x 2m x 2.8m

13.5m x 2.3m x 2.8m

Weight



About 4.5T

About 5.5T
