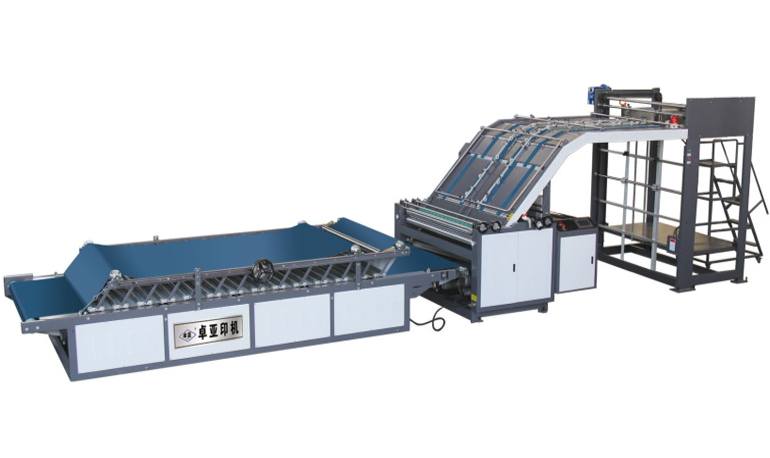

This machine adopts the bottom paper suction automatic feeding system. The surface and bottom can be stacked more than 1 meter high at one time. The paper pile rises automatically, eliminating the trouble of frequently moving the surface paper. It is easier to feed paper, more convenient to add the bottom paper, and more efficient. It is suitable for laminating color printed surface paper and corrugated paper.
◆ The top paper can pile up the height of 1.5m once time, it makes delivery more easierand efficient.
◆ Using suction feeding automatic of bottom sheet, according to the main machineoperating speed, continuous automatic tracking.
◆ The machine operation is stable, surface paper with corrugated paper joint veryAccurate.The corrugated paper never pull ahead, surface paper’s location is easyadjust.
◆ Machine uses touch-screen/PLC/servo motor control system, the circuit system isstable , and can automatically display the failure alarm.
◆ Automatic gluing ,and the glue can be used circulatory, avoid glue waste.

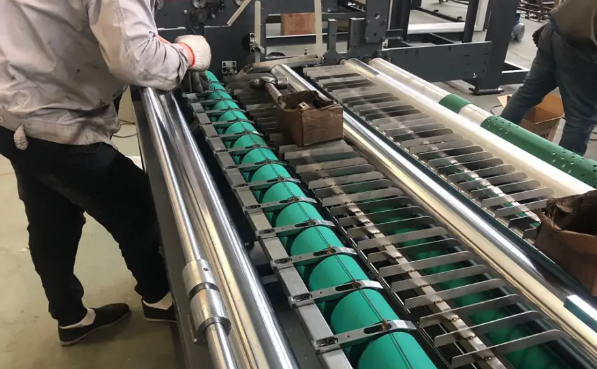

◆ Roller design scientifically, avoid glue fly out when the speed is high.
◆ Pressure rollers adopt unilateral adjustment, convenient and fast.
◆ Rocker controls wash roller’s fluctuation, easy cleaning.
◆ Counter designs scientifically, easy recording the amount you have been worked.
※Technological parameter
Model | ZY-130HII | ZY-1600HII |
Max size of cover face
| 1300X1250mm | 1600X1250mm |
Mix size of cover face
| 400mmX400mm | 400mmX400mm |
Top paper thickness | 140-800g | 140-800g |
Bottom sheet thickness | 2/4 ply A/B/C/E/F Flute | 2/4 ply A/B/C/E/F Flute |
Speed | 0-100m/min | 0-100m/min |
Precision
| ±1mm | ±1mm |
Power
| 9 kw | 9 kw |
Size
| 10m x 2m x 2.9m | 10m x 2.3m x 2.9m |
Weight
| About 3000kg | About 3500kg |
