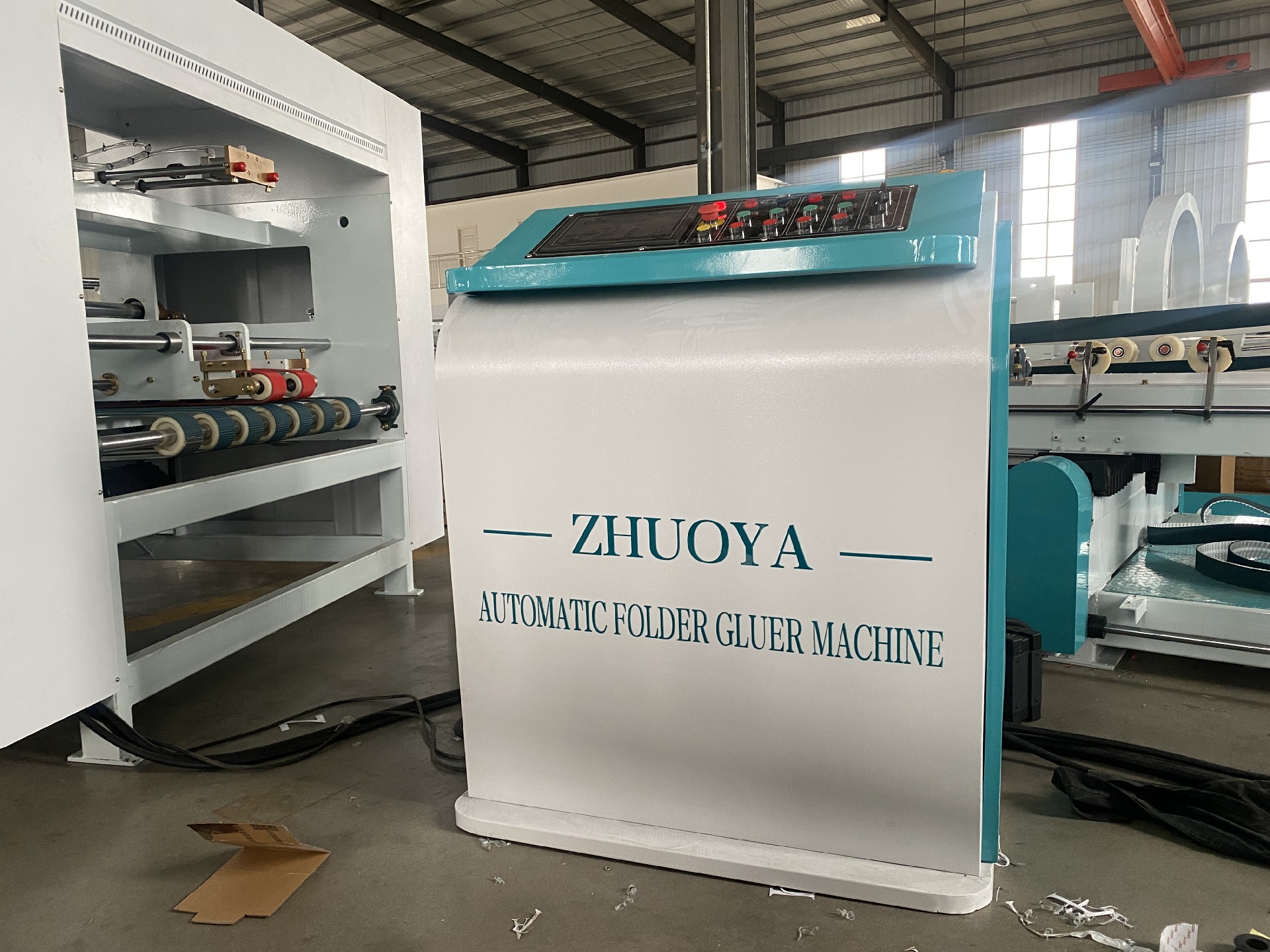

Automatic box gluing machine consists of three parts: vacuum feeding part, gluing folding part and counting and stacking output part, digital display control, PLC computer adjustment, double frequency conversion synchronous operation, with simple, fast, reliable and accurate control mode.

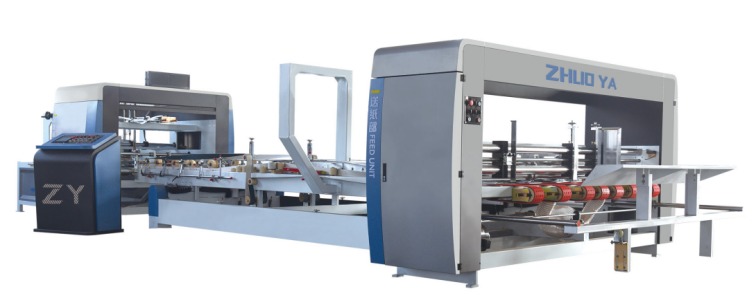

The fully automatic carton gluing machine consists of three parts: a vacuum paper feeding part, a glue coating and folding part, and a counting and stacking output part. Digital display control, PLC computer amplitude modulation, double frequency conversion synchronous operation, with simple, fast, reliable and accurate control mode. Automatic paper feeding, automatic gluing and folding, automatic box feeding, automatic counting, automatic stacking output, synchronous belt paper feeding, differential adjustment, remote control within 100 meters to realize remote host start and stop, host acceleration and deceleration, fan start and stop, delivery Paper start and stop, emergency stop, left and right arm adjustment, glue box adjustment, average box gluing speed 230 meters/minute, high speed, energy saving, saving labor cost.
It adopts the air suction and paper feeding method at the front edge of the belt, which is accurate and reliable.Using high-end electromagnetic clutch and electromagnetic brake system, the paper feeding section can be controlled independently, making the operation simple and reliable.The paper pressing wheel is linked to the folding part, and the height is electrically adjustable, suitable for cardboard thicknesses of 2-9mm.The lower paper feeding synchronization wheel is linked with the folding part, and the speed is controlled by frequency conversion. The paper feeding speed is 0-230m/min.The transmission sprocket is fastened with an expansion sleeve, which is more flexible, easy to disassemble and less likely to be damaged than the traditional keyway installation method; the sprocket and chain are double-row type, which has a longer service life than a single row.
The main motor adopts frequency conversion speed regulation system without noise and stable speed regulation.
The imported high friction belt is used to convey the cardboard, and it is automatically stacked.
Using stainless steel wheels to apply glue, the glue amount is uniform, trouble-free and glue-saving.
The folding part is equipped with a cardboard correction device and an indentation correction device.
The folding part has two rows of adjustable inner positioning guide wheel system, the forming accuracy is higher and the folding speed is 0-230m/min.
