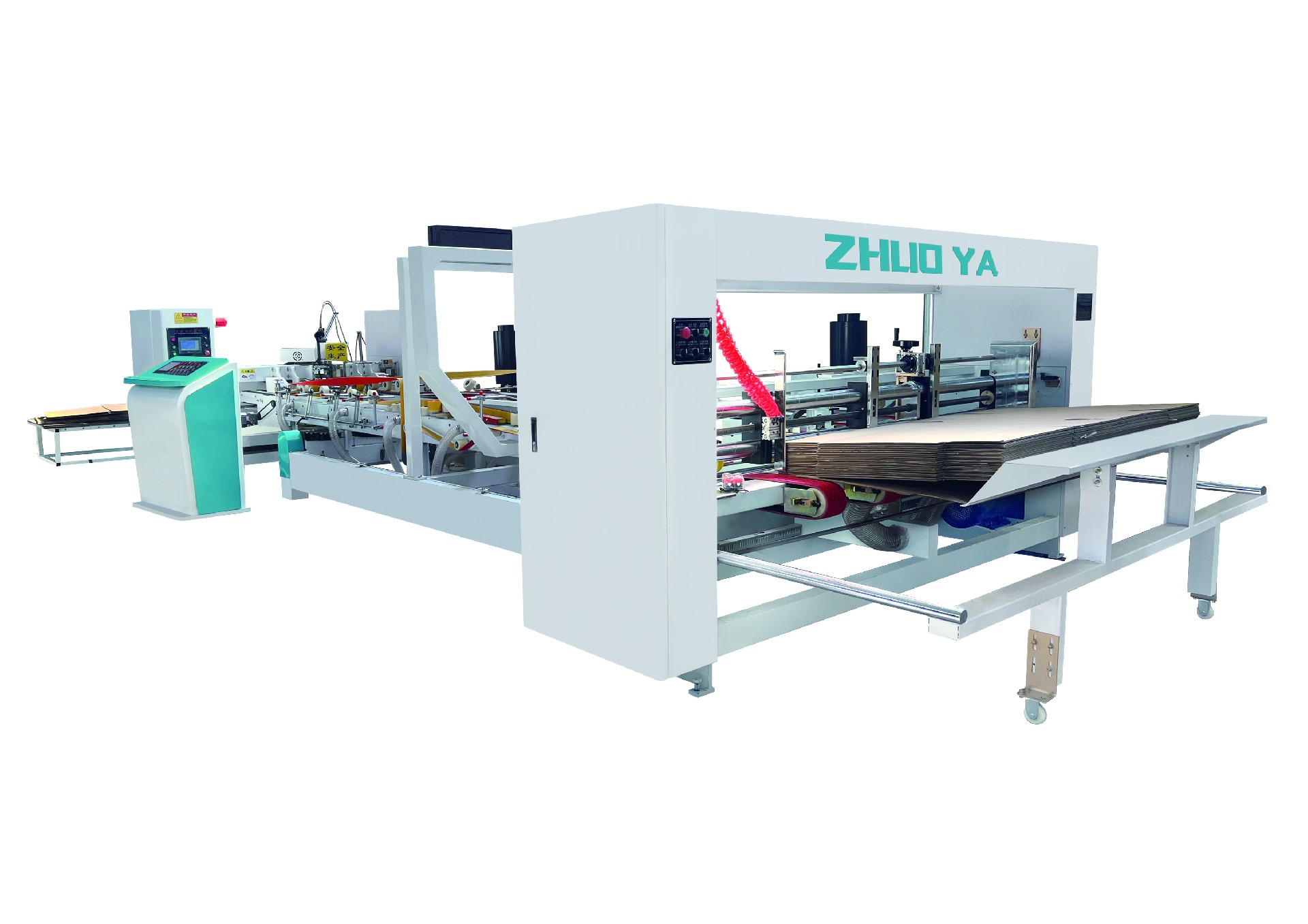

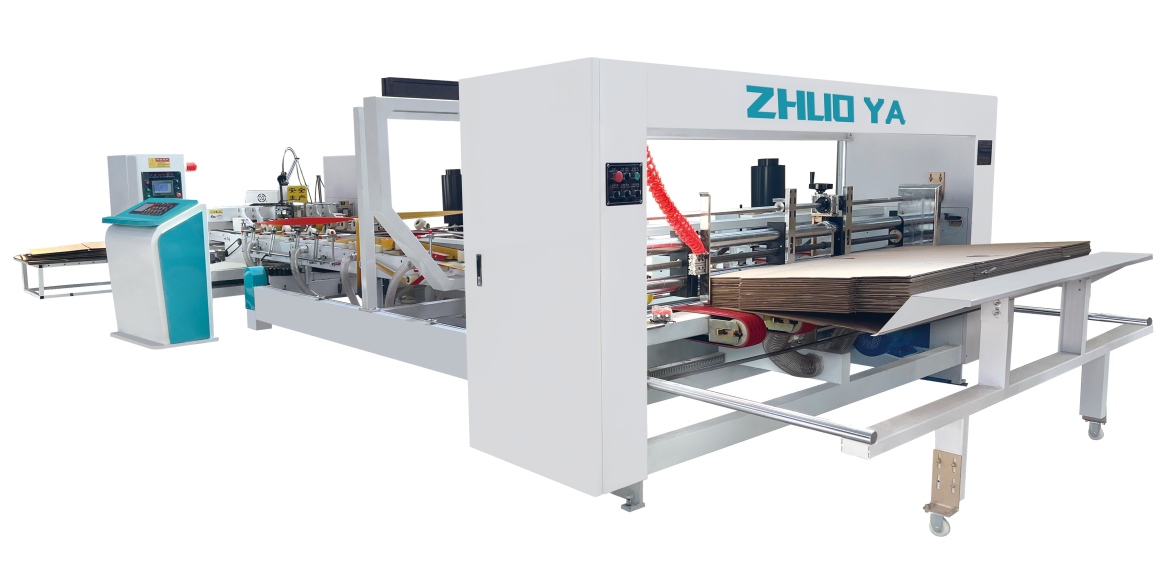

The automatic stitching machine is composed of a public paper section, a folding section, a staple box section, a counting and stacking output section. Frequency conversion speed regulation, operation is simple and reliable.
The automatic box stapler is composed of a public paper section, a folding section, a staple box section and a counting and stacking output section. Frequency conversion speed regulation, simple and reliable operation.
Automatic paper feeding, automatic folding, automatic correction. Automatic counting, automatic stacking output.
Automatic stacking, frequency conversion speed regulation, touch screen input data.
It can effectively overcome the scissors and crow's feet in the traditional nail box process, and ensure the accuracy and quality of the nail box.
Great street labor and increased work efficiency.
maximum（A+B)*2+5 | 2500mm | The minimum length A | 170mm |
minimum (A+B)*2 | 580mm | The maximum width D | 900mm |
maximum（C+D+C) | 1200mm | The minimum height D | 150mm |
minimum （C+D+C) | 250mm | Max tongue width E | 50mm |
The minimum roll cove C | 50 | The maximum length A | 750mm |
| The biggest shake cove C | 380mm | The minimum width B | 120mm |
| The maximum width B | 530mm | Number of nails | 1-99 |
Mechanical speed (nails/min) | 800 | Nail pitch | adjustable |
