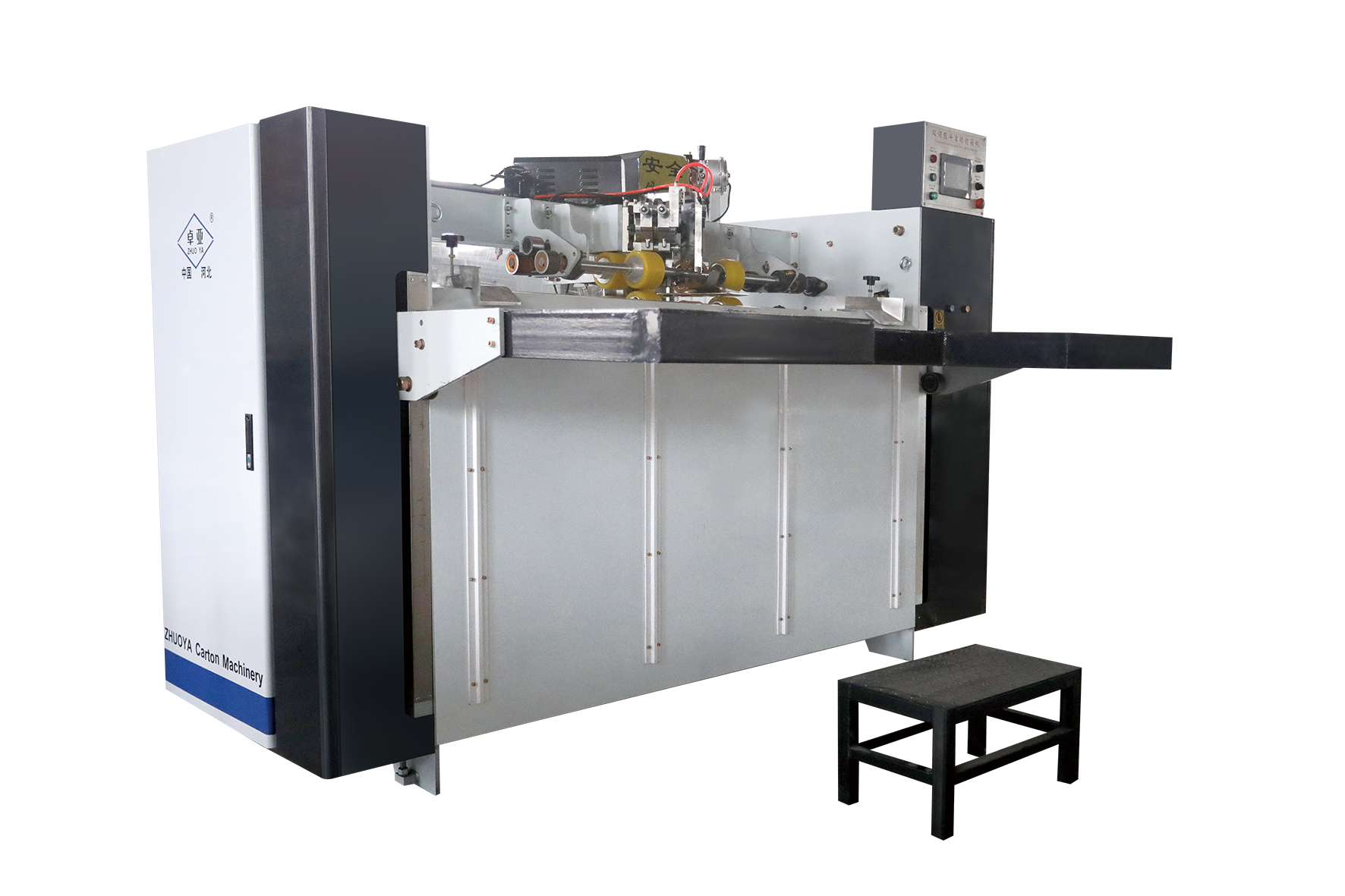

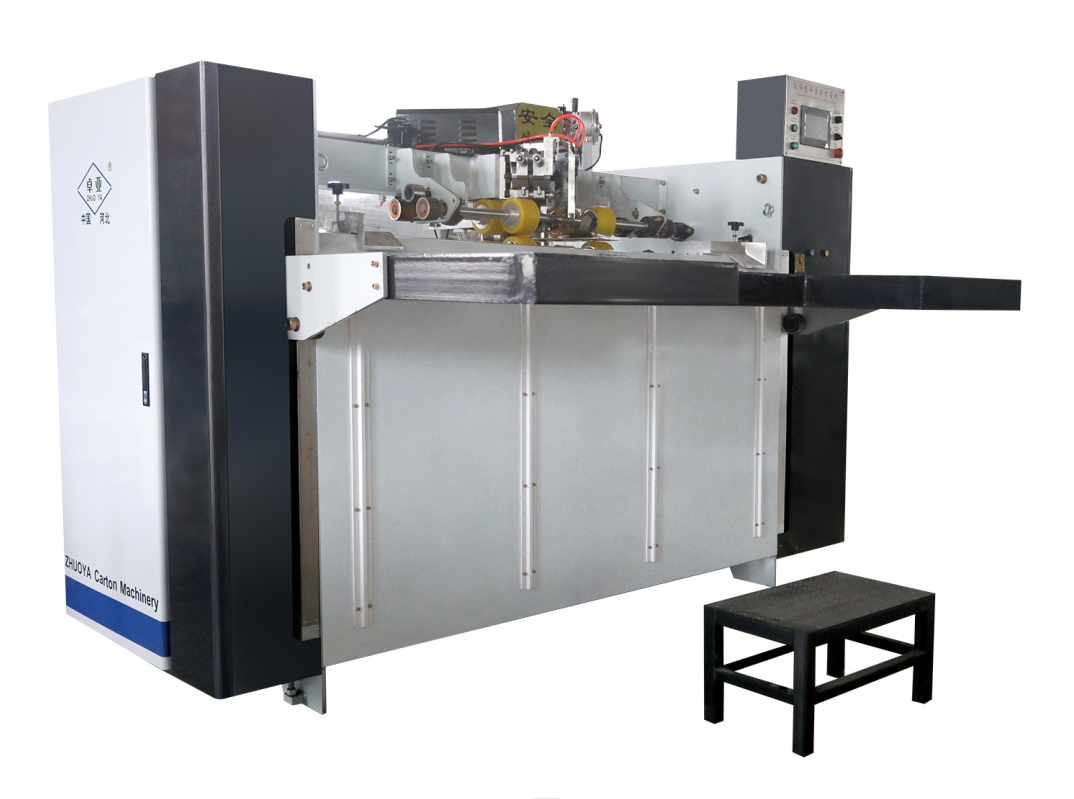

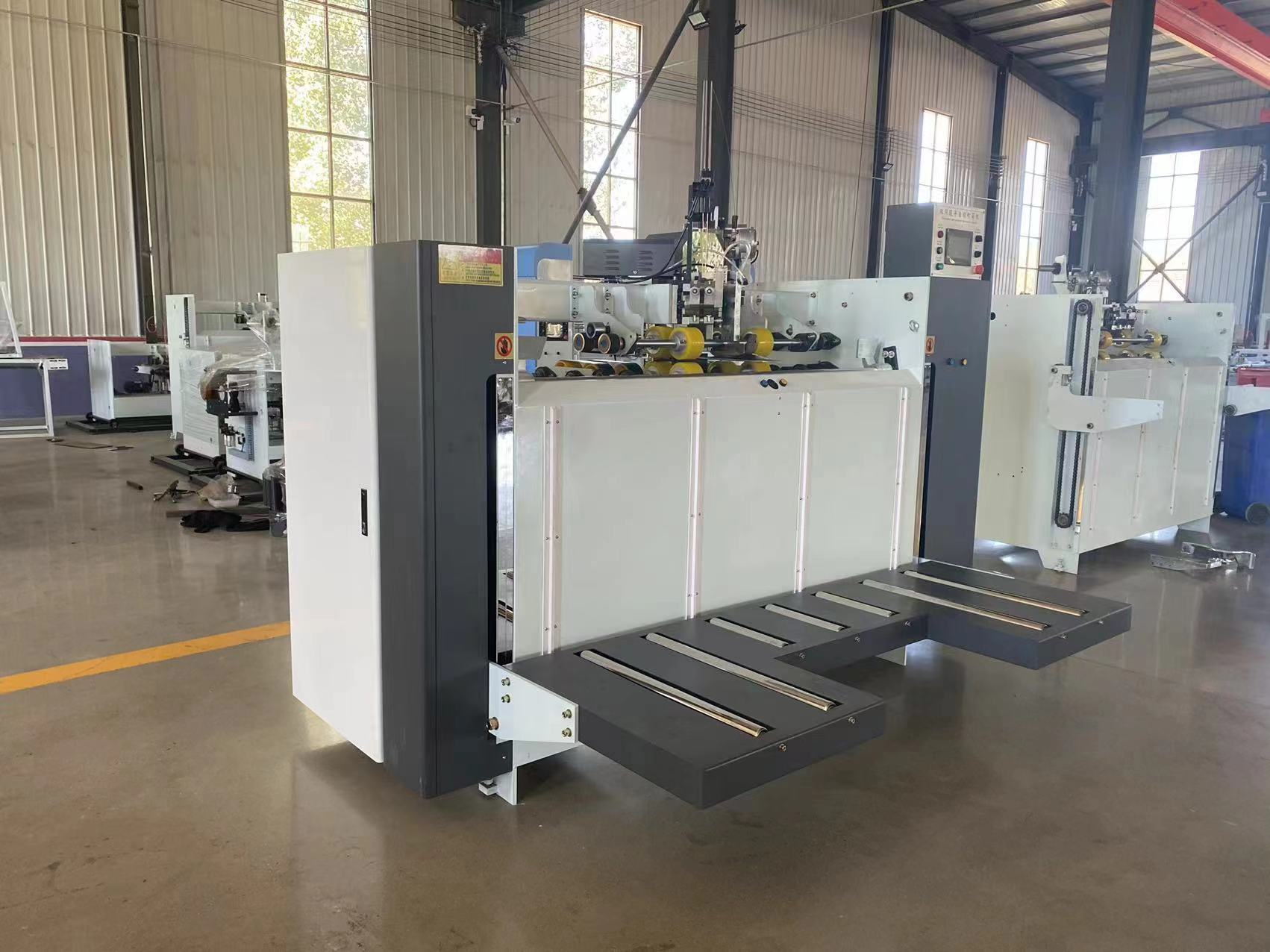

The Semi-automatic single piece stitching machines indopts international famous brand Electrical appliances, with stable and durable, cost-effective.
★ Imported Japan's Mitsubishi dual-servo drive with accurate precision and reduced mechanical transmission parts, which can effectively reduce the failure rate of machinery.
★Weilun touch screen operation, parameter (nail distance, number of nails, type of nails, rear baffle) is convenient and quick to change.
★The whole control system adopts Omron PLC control system.
★The rear electric baffle is driven by stepping motor, the size is accurate, and it is more convenient and quick to change the size.
★All the contactors in the control box adopt the Japanese Mitsubishi brand.
★The photoelectric and contact switches adopt the Omron brand.
★The bottom mold and the blade are made of Japanese tungsten steel (wear-resistant).
★The whole group of nail heads are all made of special steel, which is precisely machined by computer numerical control.
★It can be nailed with single nails, double nails and reinforced nails (two ends are double nails and the middle part is a single nail) at one time, which can meet the different requirements of different customers for different types of nails.
★It only takes one minute to change the size of the carton and adjust the nail distance of the carton, which greatly saves time and is easy to operate.
★It can be nailed with cover box and without cover carton (with or without cover box, if it is required, please specify when ordering enough machinery).
★The front-end paper feeding part automatically counts, and the paper feeding table is equipped with a photoelectric induction device, which automatically rises when feeding paper.
★There is an automatic counting function in the rear section, and the number of finished products can be sent to the end of the conveying machine in batches according to the set number (1-99), which is convenient for packing and bundling.
★Mechanical speed: 800 nails/min.
★Nail distance: 30-120mm can be adjusted arbitrarily.
★Electrical adjustment of the gap between the paper pressing and rubber rollers.
★Effective height of worktable lifting: 900mm.
★The size of the machine: the host is 2.8x2.7x2 meters.
★Machine weight: 2 tons.
★The whole machine can be adjusted by order, which can save 100 orders.
Biggest size（A+B)X2 | 3800mm | Minimum length A | 250mm |
Smallest size（A+B)X2 | 740mm | Maximum height D | 2000mm |
Biggest size（C+D+C) | 2760mm | Minimum height D | 150mm |
Smallest size（C+D+C) | 250mm | Max tongue width E | 40mm |
Minimum shake cap C | 50mm | Maximum paper feed height | 900mm |
Maximum shake C | 380mm | Mechanical width | 2850mm |
Maximum width B | 760mm | Mechanical weight（T) | 2 |
Minimum width B | 120mm | Mechanical speed (nails/min) | 800 |
The maximum length A | 1140mm | Number of nails | 1-99 |
