Product Introduction:

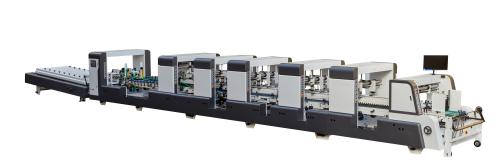

ZY series group-type folder gluer, the whole machine adopts electric adjustment plate, PLC control, imported electronic components, the paper feeding part adopts independent motor control, chute operation, stable performance, strong controllability and operability. This machine is professional for various cardboards and corrugated packaging boxes, and adopts deviation correction function to make corrugated boxes more perfect. (It can be designed separately according to customer needs)

 Feeding :Adjustable paper feeding belt ensures easy machine adjustment and smooth paper feeding.Continuously variable transmission ensures balanced feeding spacing and stable conveying.One-button pneumatic lifter facilitates adjustment of paper feeding belt.

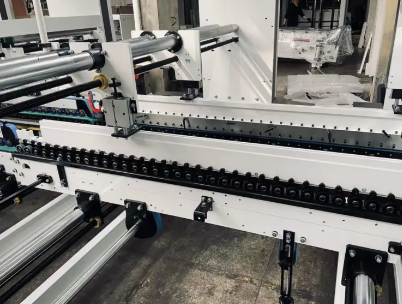

Alignment:Alignment section, which automatically corrects the box after it is ejected from the paper feed section

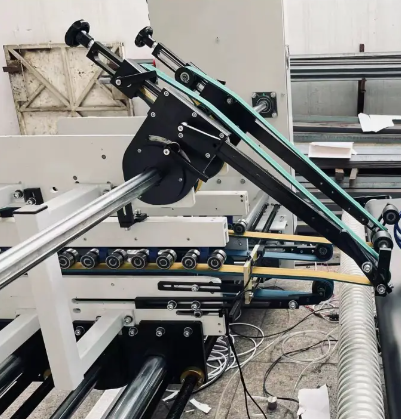

Pre-folding & Back Folder:Pre-fold and back folder section: Equipped with right/ left pre-fold to complete 180° pre-folding on small side. Equipped with right/left to complete 135°pre-folding, according to the size of the box, thus making it easier to spread cartons

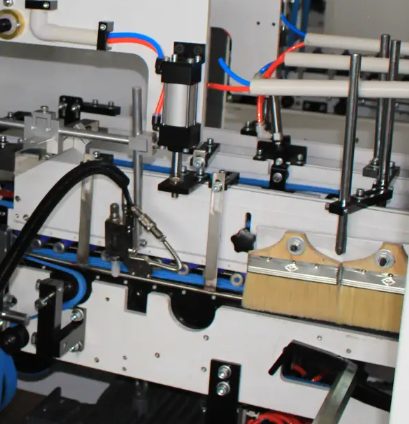

Bottom-lock& Back Folder:Bottom Gluer section: All gluing drums can be loaded and unloaded; Two upper gluing drums (right and left) and two lower gluing drums (right and left), to be selected depending on actual needs; Glue quantity in gluing drums is adjustable, thus ensuring stability and easy maintenance; Gluing roller is 4mm thick in standard version and can be customized according to customer requirements; Made with aluminum, gluing drum is firm and durable; Bottom gluing is completed by 4 groups of crash-locking mechanism.

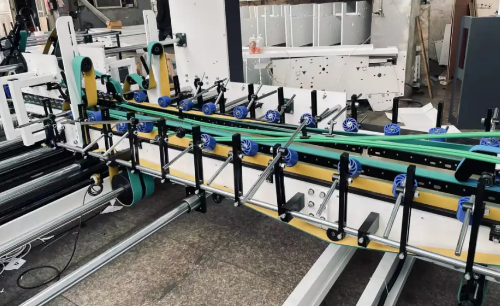

Folding:Lengthened folding to avoid the unevenness while the rapid forming of cartons and make it come to perfection.

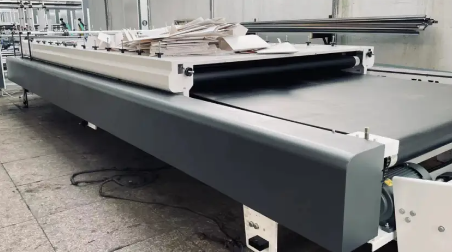

Full pressing:Creaser section:  Adopts continuous and automatic box collecting mechanism to ensure boxes enter the Conveyer section neat and well aligned; Equipped with electronic counter/automatic mark spraying kick plate for counting and mark-spraying purposes; Equipped with air compressor system and creasing channel system; Pressure rollers can be adjusted depending on box types and paper quality to achieve flawless box creasing.

Transmission:Equipped with feeding paper inspection device.Equipped with impacting device to press the paper after accounting and make it easy to pack paper.

4&6-corner section:4&6-corner section: Rear-crash lock of mechanical operation in coordination with paper delivery photoelectric, thus ensuring every box continuously and accurately crashlocked and speedily, stably to make 4&6 angle box.
