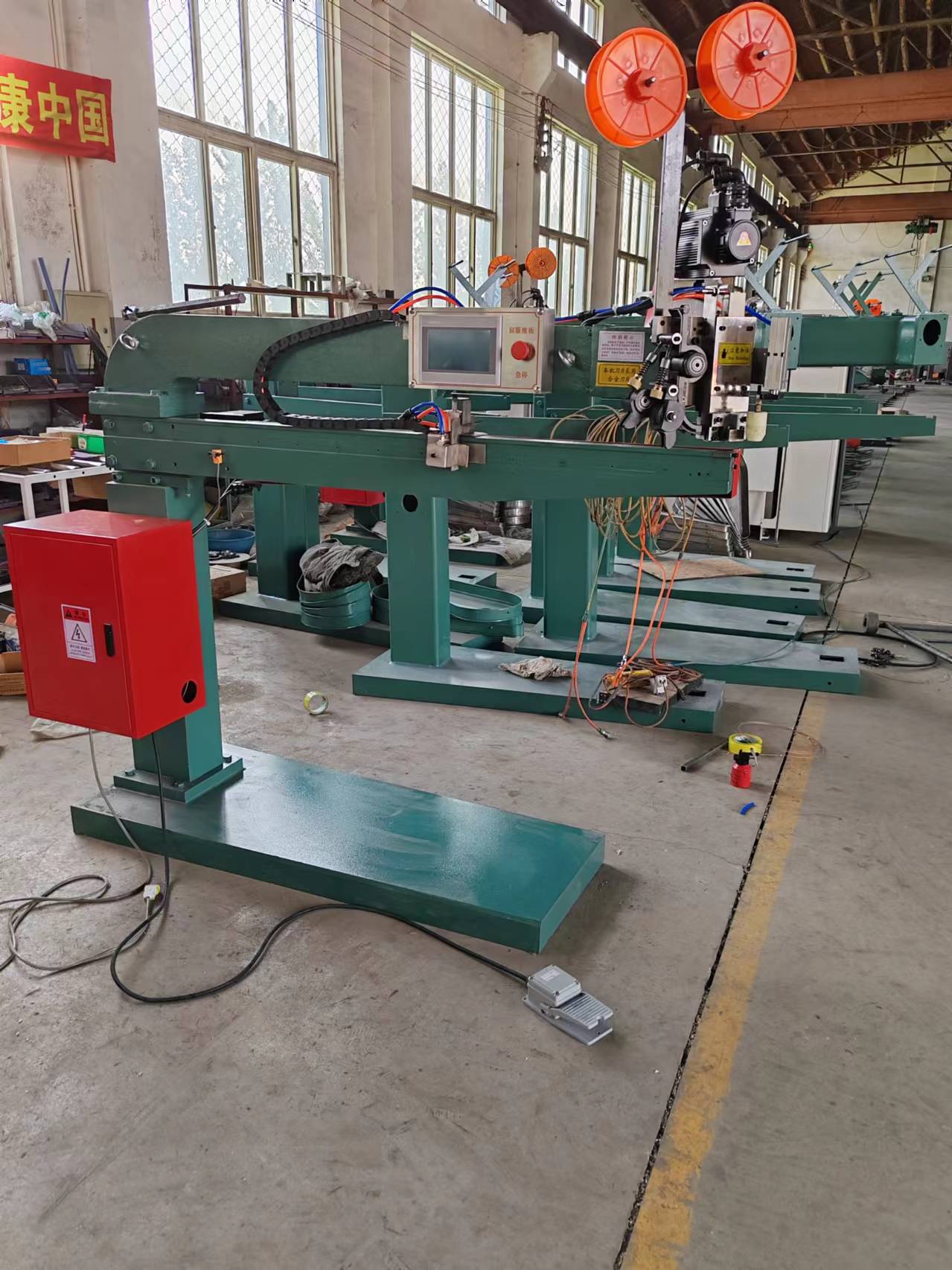

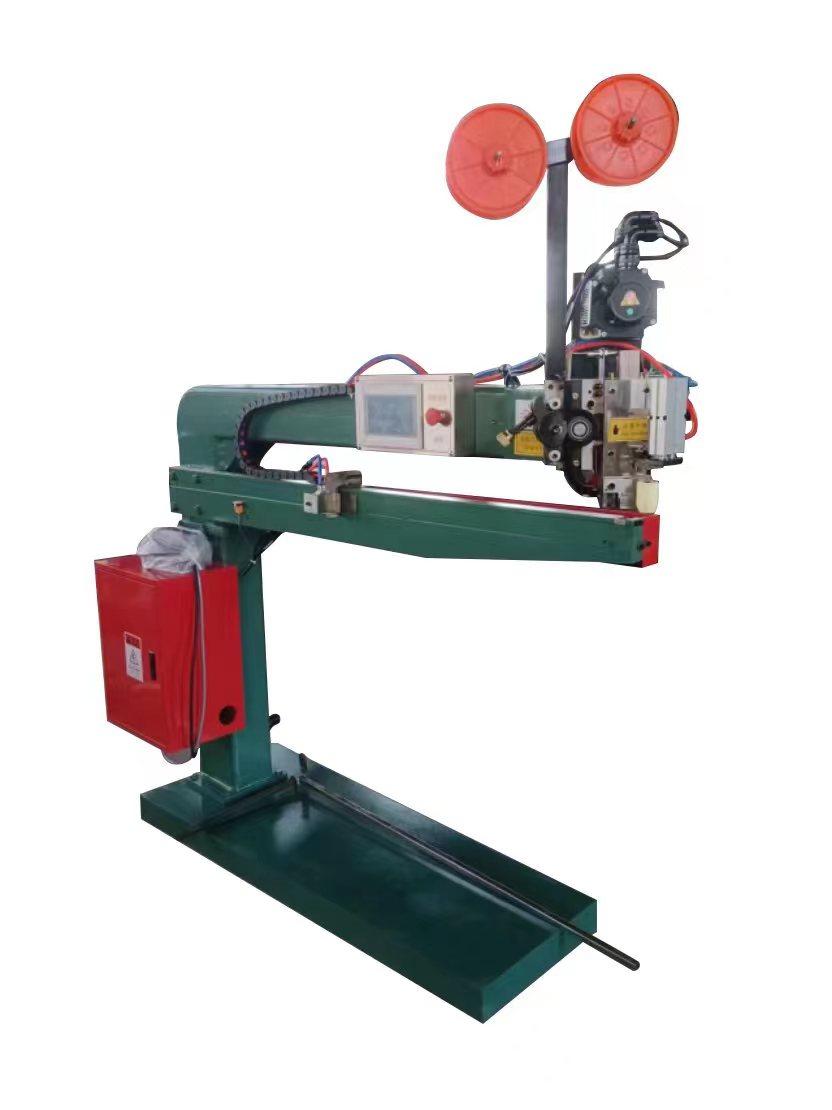

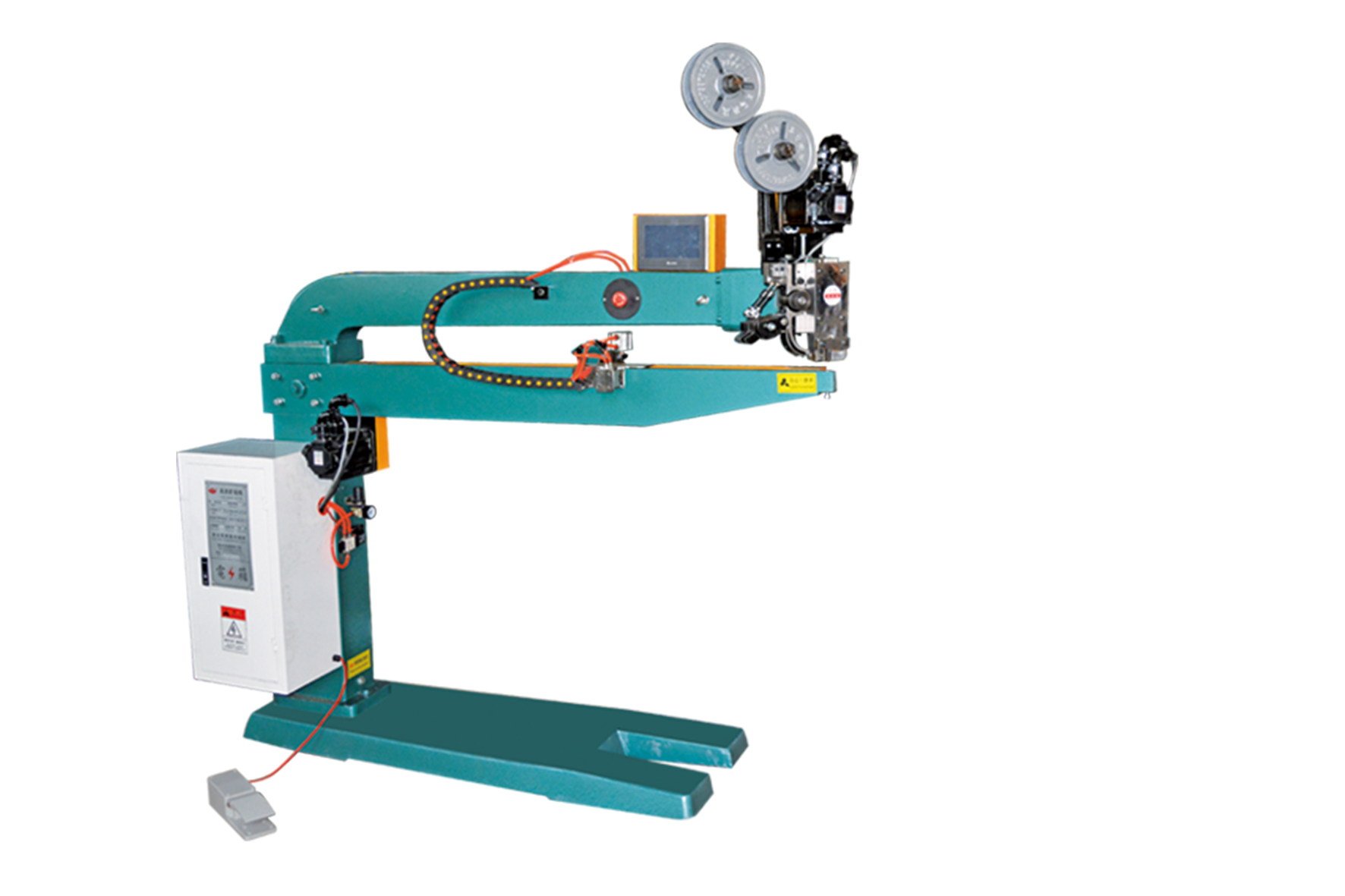

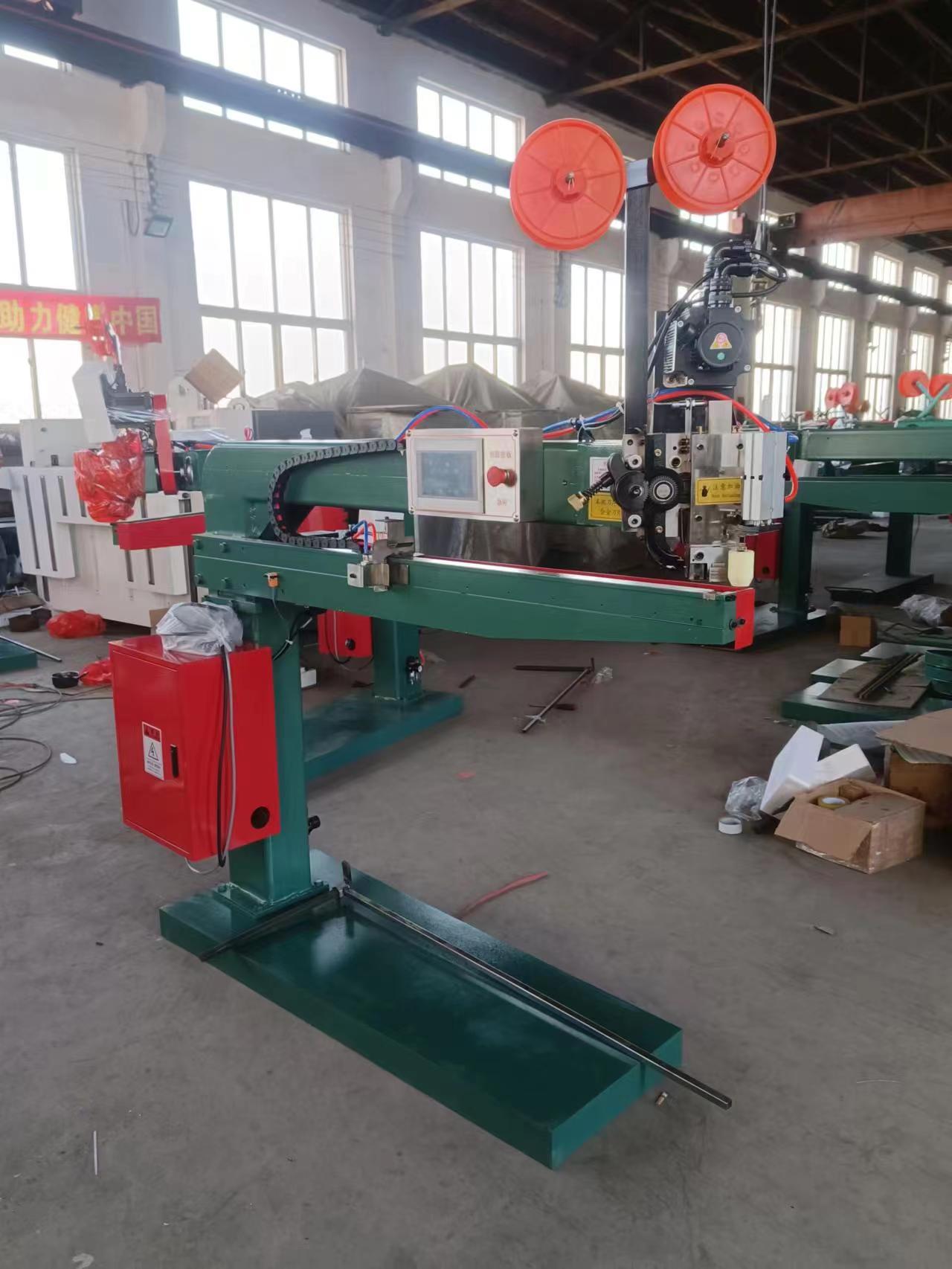

Dual Servo High-Speed Box Stitching Machine.★Machine speed: 200-450 nails/minute. ★Nail distance:arbitrarily adjustable.
Product Introduction
The machine is controlled by double servo push plate, and the main parts of the head are made of alloy steel to improve service life. Nail function, in the computer screen input nail number, box height can be moved before and after, to ensure 100% equidistant nail distance, thus solving the traditional nail machine must need skilled staff operation trouble, new employees can be skilled and efficient use of this double servo high-speed nail box machine! Save the enterprise mechanic staff loss, labor costs high problems, reduce costs.
★Machine speed: 200-450 nails/minute. ★Nail distance:arbitrarily adjustable.
序号 Serial number | 名称 Name | 品牌 Brand | 产地 Origin | 备注 Remarks |
01 | 机头伺服电机 Head servo motor | ELESY | 合资 Joint venture | |
02 | 推板伺服电机 Pushboard servo motor | ELESY | 合资 Joint venture | |
03 | PLC、光电开关及接近开关 PLC、 photoelectric switch and proximity switch | 永宏 Yonghong | 台湾 Taiwan | |
04 | 接触器、断路器 Contactors, circuit breakers | 正泰 Zhengtai | 浙江 Zhejiang | |
05 | 中间继电器 Intermediate relay | 正泰 Zhengtai | 浙江 Zhejiang | |
06 | 气缸、电磁阀 Cylinder, solenoid valve | 丰伟 Fengwei | 上海 Shanghai | |
07 | 触摸屏 Touchscreen | MCDS | 台湾 | |
08 | 刀片 Blade | 日本合金钨钢制作 Japanese alloy tungsten steel | 耐磨损 Wear resistance | |
09 | 底模 Bottom Mold | 日本合金钨钢制作 Japanese alloy tungsten steel | 耐腐蚀 Corrosion resistance | |
10 | 轴承 Bearing | HRC | 哈尔滨 Haerbin | |
11 | 同步轮、同步带 Synchronous wheel, synchronous belt | 欧异特 Eurotert | 德国 Germany |
