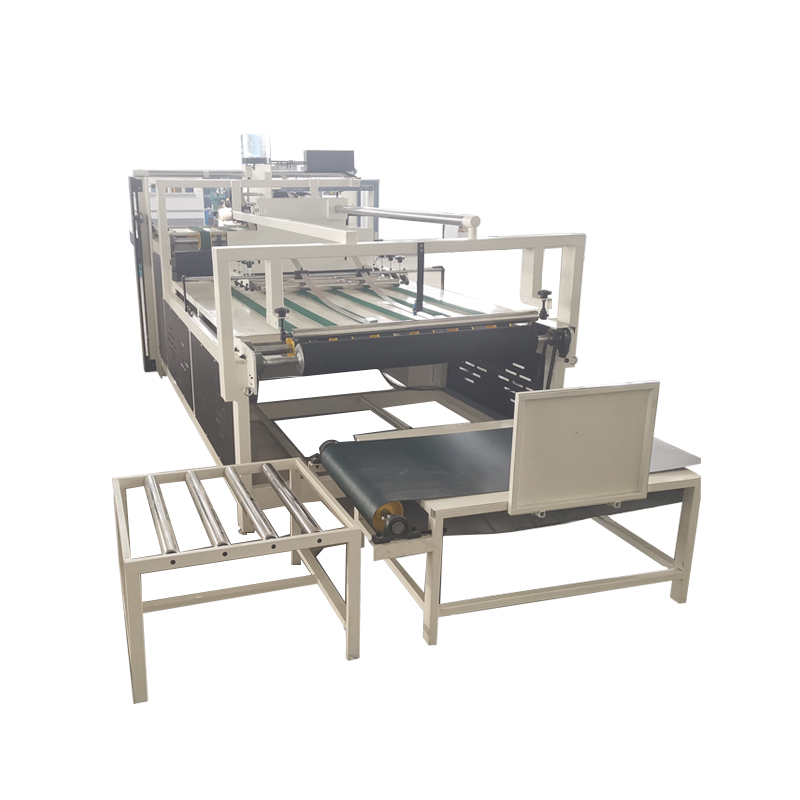

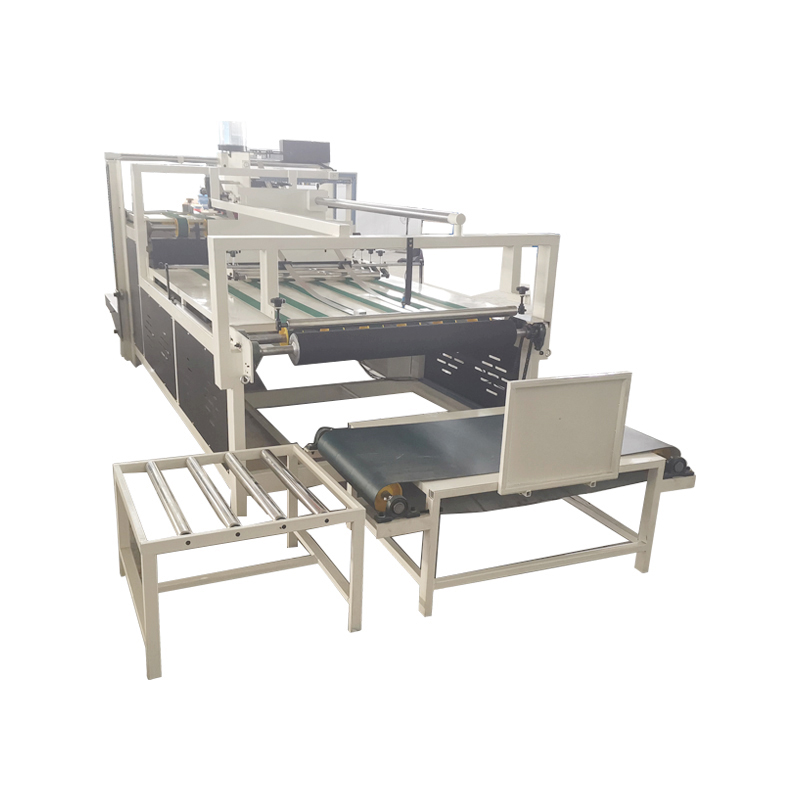

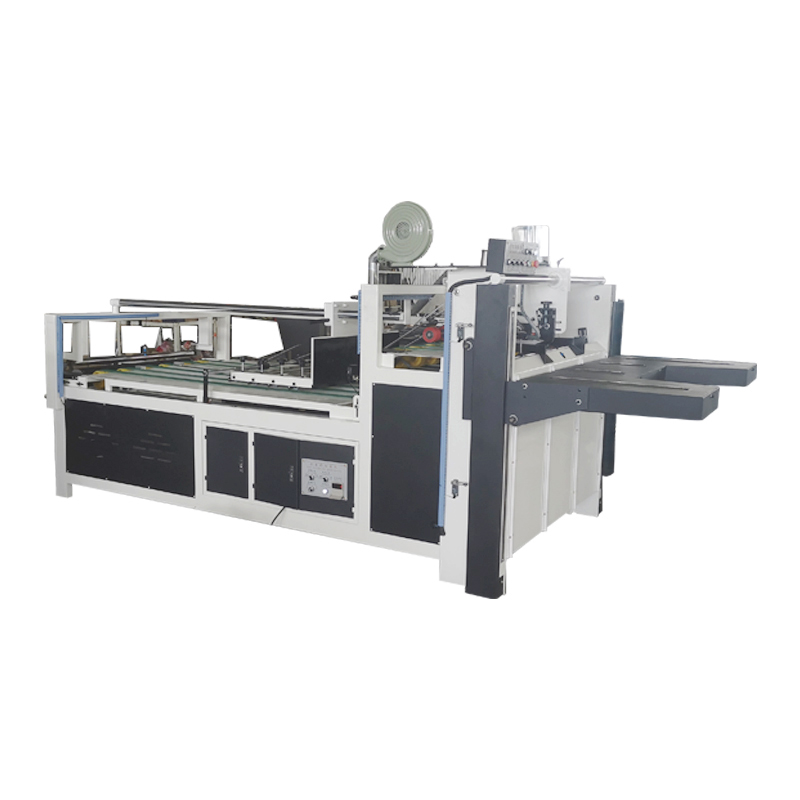

This machine adopt famous brand electric spare parts, siemens electric , omron photoelectricity switch, Japan TOKY counter Taiwan MINGWEI electric power supply Gluer head adopt special alloy material, anti-acidity and anti-alkalescence, to keeping the gluer head for long life. Main motors adopt Taiwan Chengpang motor.
Scope of application and characteristics:
This machine is suitable for gluing all types of cardboard and corrugated paper.Its operation is simple and no experience is required.
It can change quickly in one minute, the width and height of the carton are the smallest, and it can paste about 240mm. It is an ideal carton gluer for carton manufacturers.
Main technical parameters:
Max size (length + width) | 2450mm |
Min size (length + width) | 600mm |
Min size (width + height) | 260 |
Carton height | 900mm |
Horsepower used | 5HP |
Mechanical length | 5000mm |
Mechanical weight | 1150kg |
Mechanical speed | 50m/min |
Main structure and working principle
Main working part:composed of main frame and two conveyor frames.
Main frame: Rack, lifting workbench, front-section conveying device, front-section wall block paper pasting device, middle-section conveying device, middle-section wall block paper pressing device, and electrical control device.
Working principle: Pour the prepared glue into the paste bucket, press the switch button of each part, when the whole machine is running normally, open the switch of the paste bucket on the lower side of the paste bucket, so that the glue can flow smoothly to the paste head, according to the operating requirements. Push the carton so that one side of the carton can be evenly spread with glue after passing through the bottom of the paste head. After the other side passes through the paste head, it can be closely attached to the adhesive side through the pressing device such as a pressure wheel. After passing through the middle section, Pressing device to achieve the purpose of bonding.
